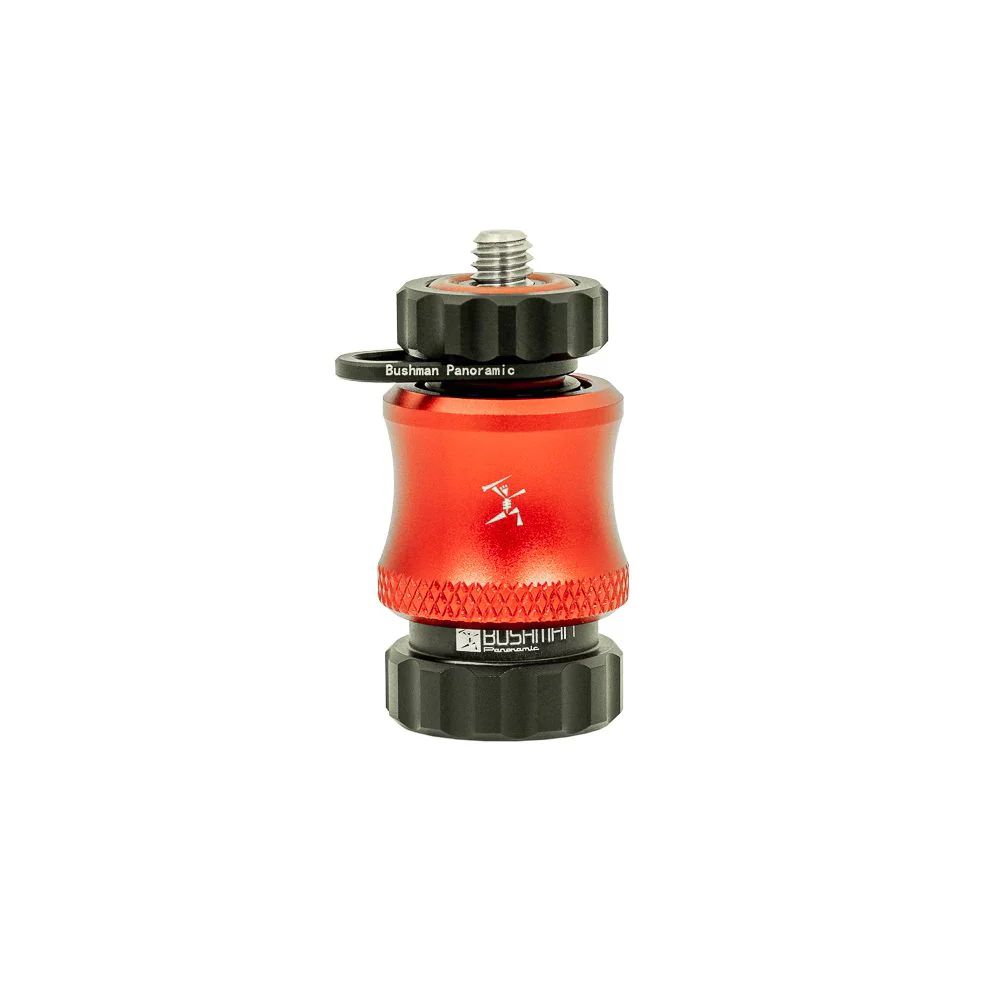

Our QUICK RELEASE is specifically designed for 360° shooting. When your camera is tightly mounted on the QUICK RELEASE base you are still able to rotate the camera and adjust your stitch line. The quick-release action is done with a simple push-down ring. Push it down and release the mount!

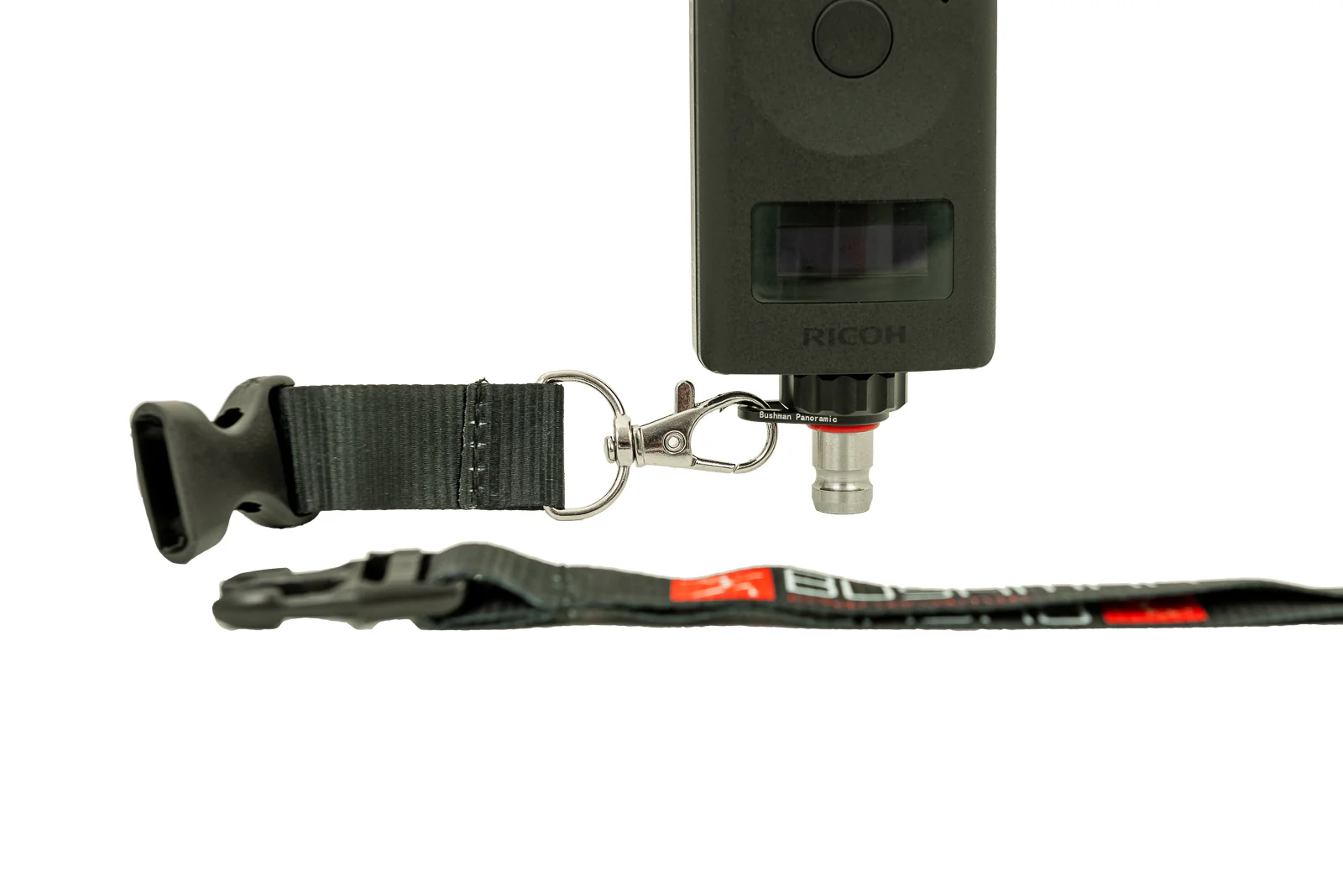

The QUICK RELEASE is designed in such a way that the male part stays on your camera at all times. You never need to take it off again!
Here is why: under the male part that attaches and stays on your camera is a 1/4" female thread, so even if you are not using the dedicated QUICK RELEASE base, you are still able to screw your camera onto any other 1/4" mount.
THE BASE PART - FEMALE
on the bottom: anti-slip O-rings
1/4" female thread
simple push-down quick-release solution

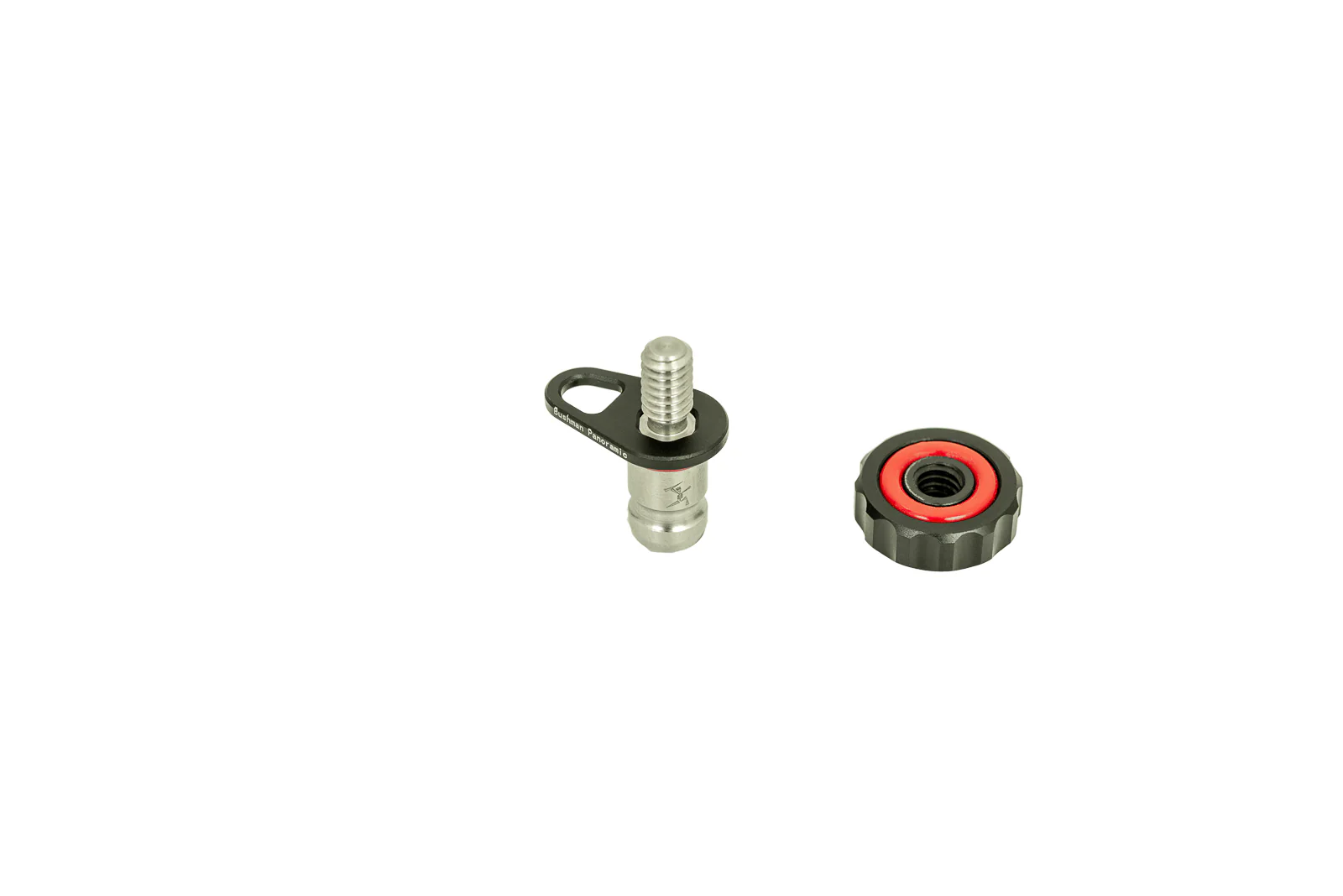

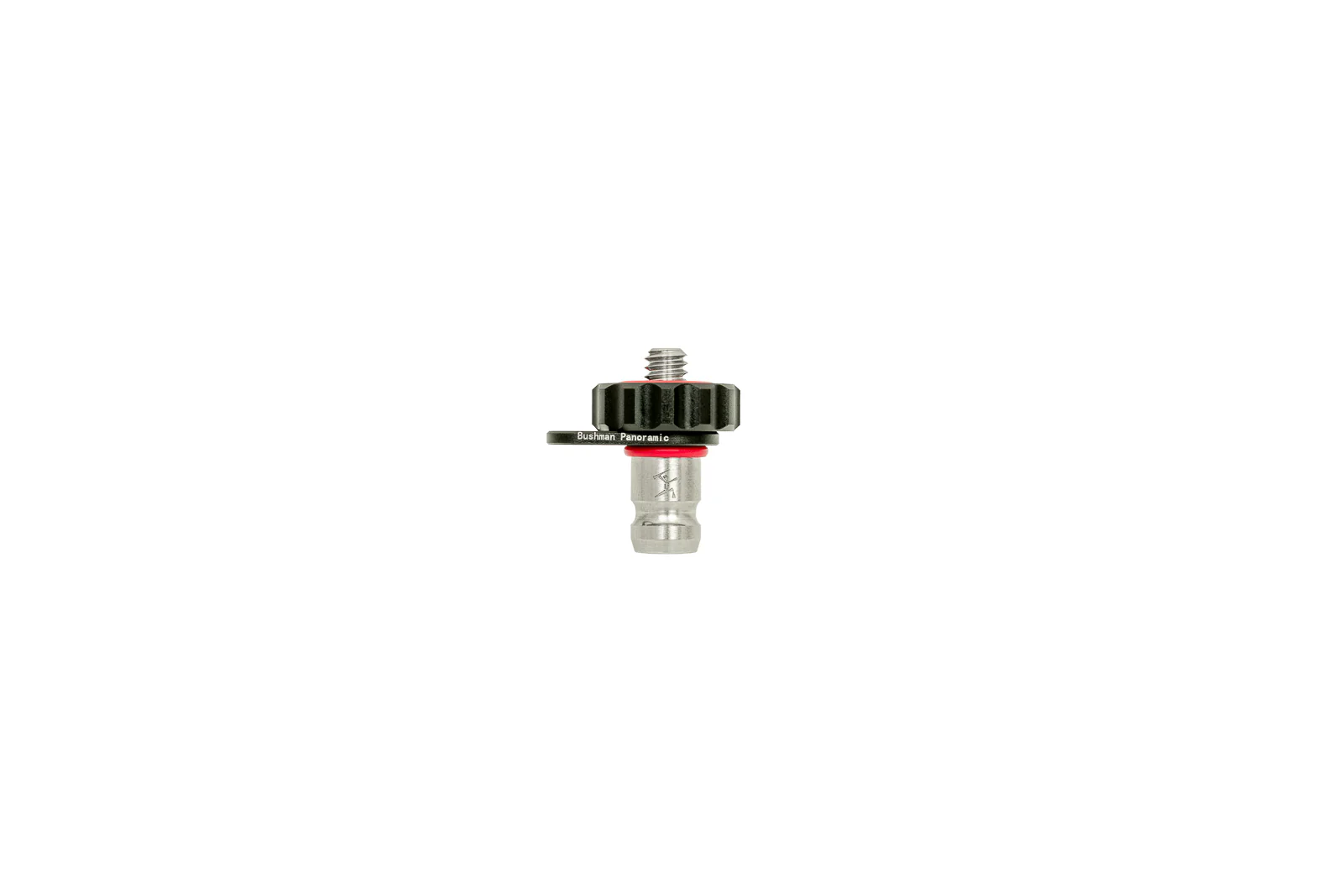

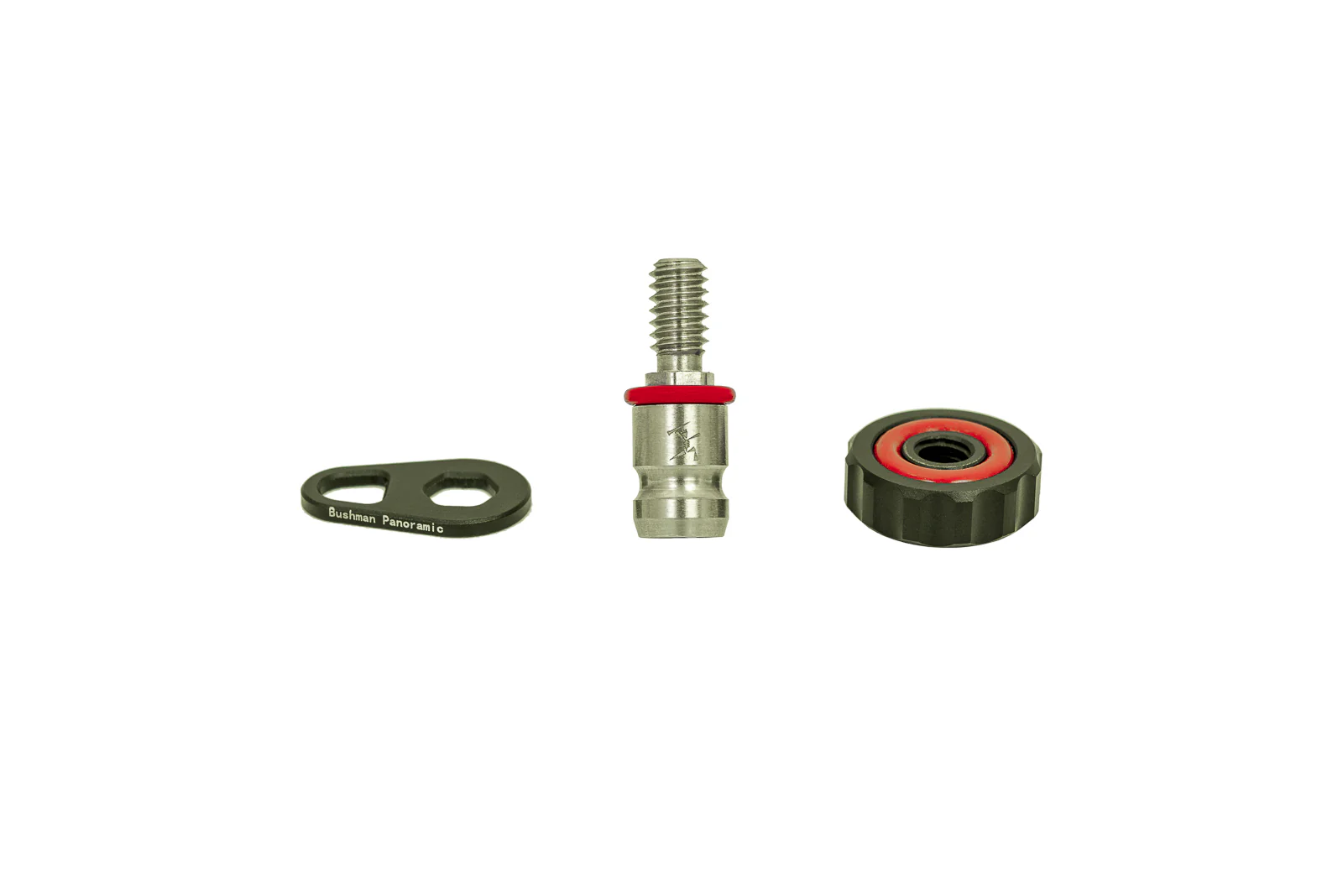

THE TOP PART - MALE
on the top: 1/4" male thread attaches to the camera
on the top: anti-slip O-ring holds the camera tight
on the bottom: 1/4" female thread attaches to any monopod or tripod
black sleeve used to tighten and release the camera
black sleeve can be hidden under the camera
ADDITIONAL SPECIFICATIONS
weight: 45 g / 1.59 oz
height: 49 mm / 1.93 in
diameter of the top part that attaches under the camera: 21 mm / 0.83 in
